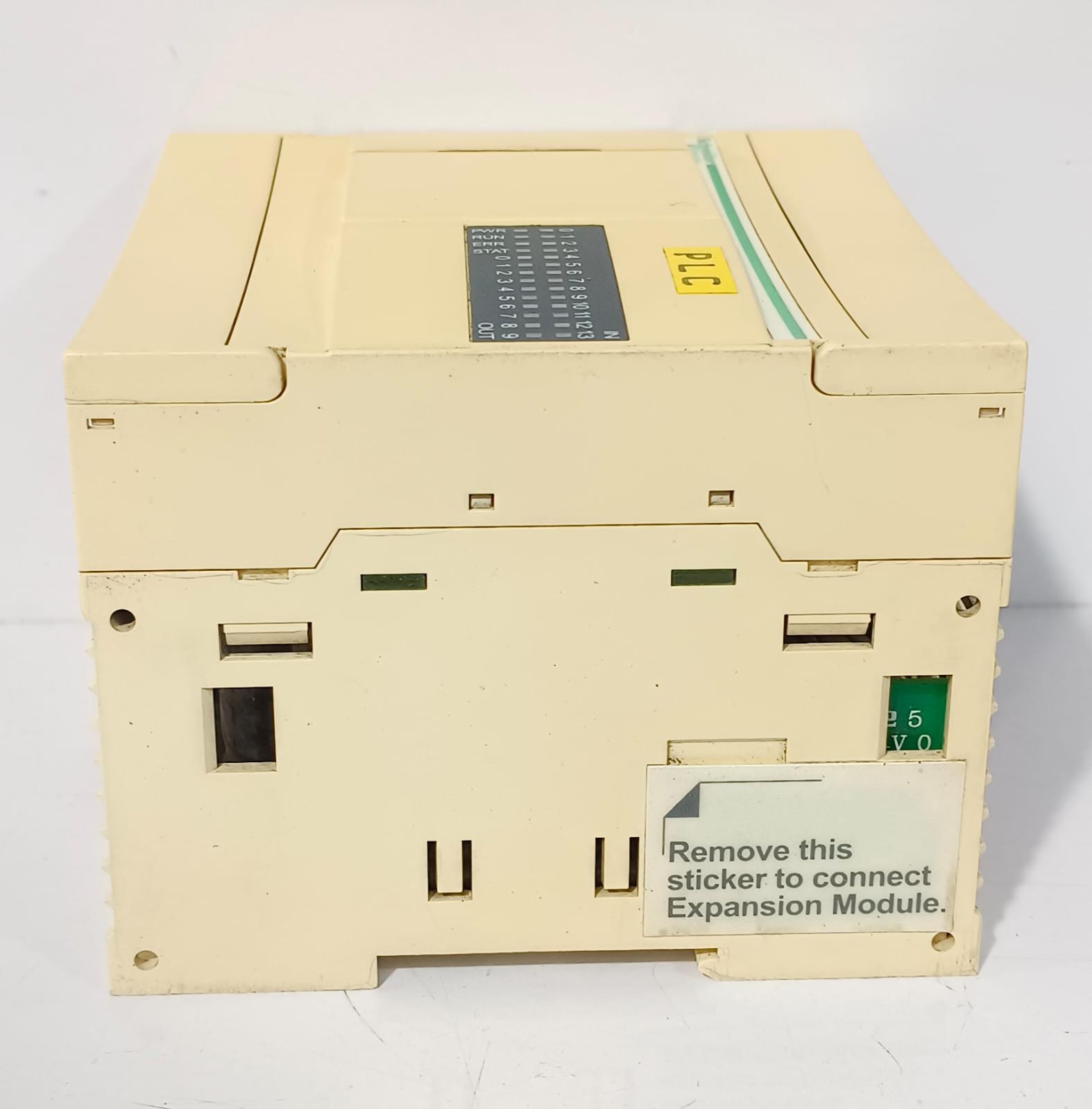

Schneider Electric TWDLCAA24DRF Compact base controller, Twido, 100 to 240VAC supply, extendable PLC base, 14 inputs with 24VDC, 10 output relays _Used
$150.00
- BRAND – Schneider Electric
- MODEL NO. TWDLCAA24DRF
- Extendable PLC Base Twido Programmable…
-
Compact base controller
-
Twido
-
100 to 240VAC supply
-
extendable PLC base
-
14 inputs with 24VDC
-
10 output relays
- 24v DC POWER SUPPLY
- Condition – used
- PRODUCT OF TAIWAN
-
Range of product Twido Product or component type Compact base controller Discrete I/O number 24 Discrete input number 14 Discrete input voltage 24 V Discrete input voltage type DC Discrete output number 10 for relay [Us] rated supply voltage 100…240 V AC Maximum number of I/O expansion module 4 Use of slot Memory cartridge or realtime clock cartridge Data backed up Internal RAM lithium, 30 days autonomy, charging time: 10 h, battery life: 10 year(s) Integrated connection type Power supply
Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s
Serial link interface adaptor (RS232C/RS485)Complementary function Event processing
PIDRange compatibility Twido Complementary Discrete input logic Sink or source Input voltage limits 20.4…28.8 V Discrete input current 11 mA for I0.0 to I0.1
7 mA for I0.2 to I0.13Input impedance 2100 Ohm for I0.0 to I0.1
3400 Ohm for I0.2 to I0.13Filter time 150 µs + programmed filter time for I0.6 to I0.13 at state 0
35 µs + programmed filter time for I0.0 to I0.5 at state 1
40 µs + programmed filter time for I0.6 to I0.13 at state 1
45 µs + programmed filter time for I0.0 to I0.5 at state 0Insulation between channel and internal logic 1500 Vrms for 1 minute Insulation resistance between channel None Minimum load 0.1 mA Contact resistance 30000 µOhm Load current 2 A at 240 V AC inductive load, operating rate <30 cyc/mn for relay output
2 A at 240 V AC resistive load, operating rate <30 cyc/mn for relay output
2 A at 30 V DC inductive load, operating rate <30 cyc/mn for relay output
2 A at 30 V DC resistive load, operating rate <30 cyc/mn for relay outputMechanical durability 20000000 cycles for relay output Electrical durability 100000 cycles for relay output Current consumption 36 mA at 5 V DC at state 1
5 mA at 5 V DC at state 0
55 mA at 24 V DC at state 1
